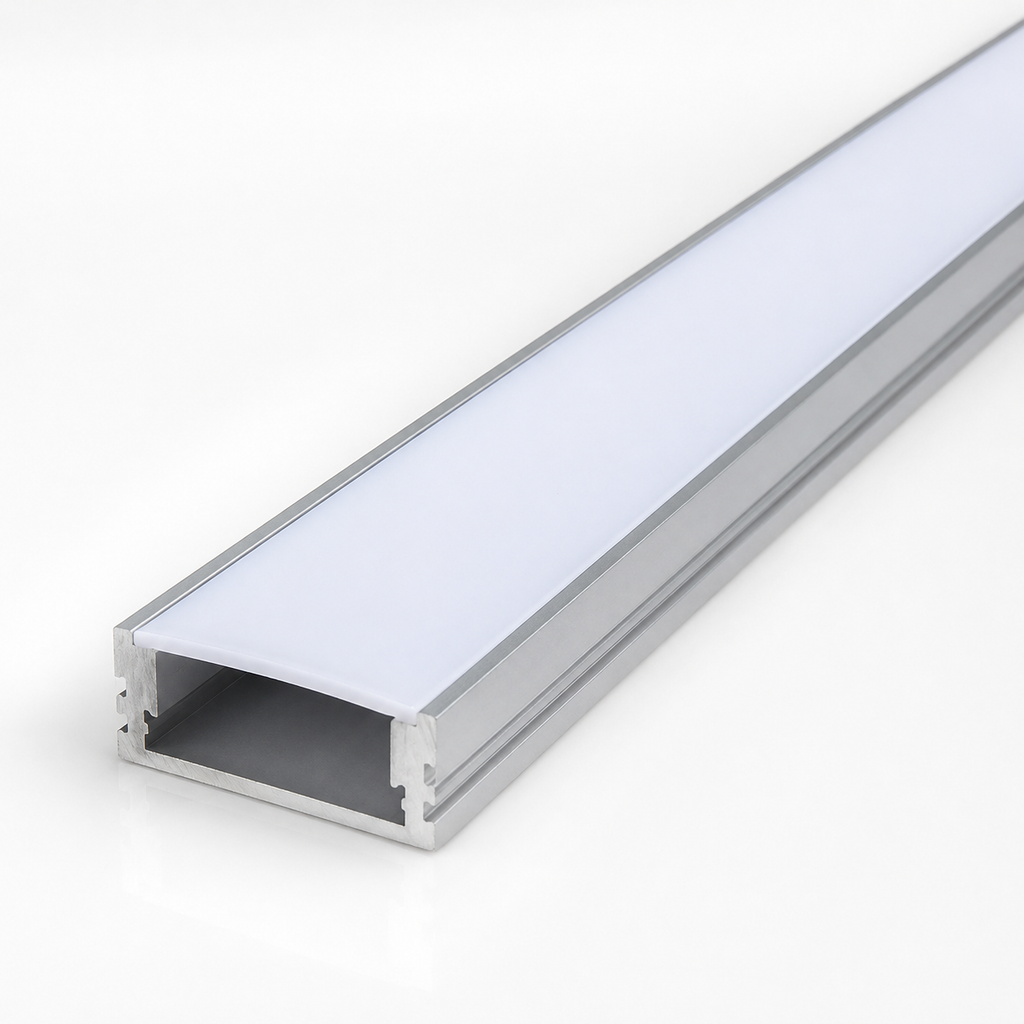

1" Wide Surface Mount Aluminum Profile

The PVAC-F77 is a wide surface mount aluminum profile designed for larger LED strip installations where maximum light output and a clean architectural finish are required. Its low-profile surface mount design makes it ideal for under-cabinet lighting, shelving, display cases, architectural accents, retail environments, and commercial applications where wider LED strips are used.

Featuring a 21mm inner channel, the PVAC-F77 accommodates a wide range of LED strips, including standard 8–10mm COB and SMD strips, as well as 15mm high-output LED strips for greater illumination. The silver anodized aluminum body provides excellent heat dissipation, while the white opal diffuser creates a smooth, dot-free lighting effect.

The profile includes surface mounting clips for secure installation, along with two end caps (one open for wire pass-through and one closed) for a clean, professional finish.

Recommended Applications

• Under-cabinet lighting
• Display shelves and showcases
• Kitchen and millwork lighting
• Retail and commercial accent lighting
• Architectural feature lighting
• Furniture and cabinetry illumination

Included Components

• White opal diffuser
• Surface mounting clips
• 2 × end caps (1 open + 1 closed)

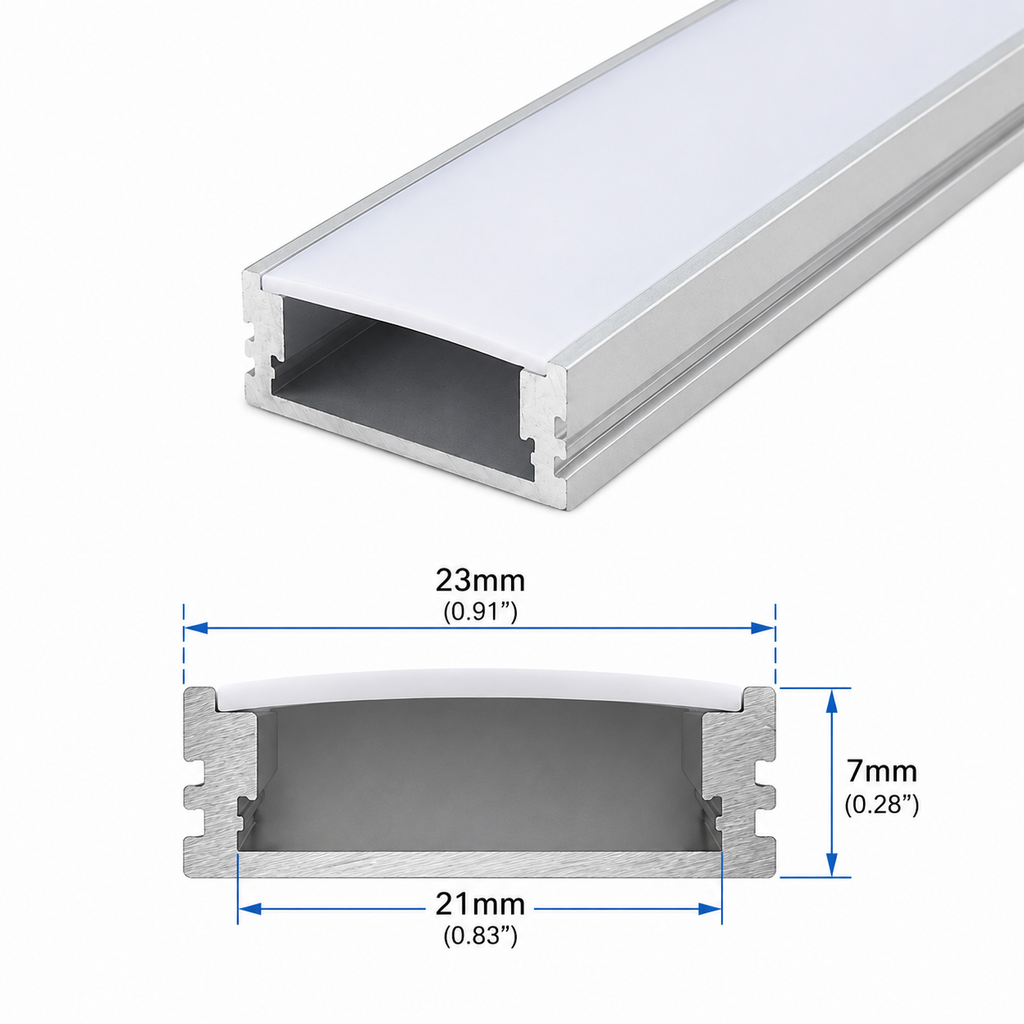

Dimensions

• Outer Size: 23 × 7mm (0.91" × 0.28")
• Inner Channel Width: 21mm (0.83")

Finish

Silver Anodized

Diffuser

White Opal Diffuser (Soft, Even Illumination)

Materials

• Aluminum Extrusion
• Polycarbonate Diffuser

Accessories Included

• Surface Mounting Clips
• 2 × End Caps (1 Open, 1 Closed)

LED Strip Compatibility

• 8–10mm LED Strips
• 15mm Wide LED Strips
• COB LED Strips
• SMD LED Strips
• Ideal for high-output and wide-format LED strip installations

Key Features

• Wide 21mm internal channel for larger LED strips
• Surface mount design for fast installation
• Excellent aluminum heat dissipation
• Frosted opal diffuser for smooth, uniform lighting
• Compatible with both COB and SMD LED strips
• Supports standard 8–10mm strips and 15mm wide LED strips
• Clean architectural appearance
• Includes mounting clips and end caps
• Suitable for residential and commercial applications
