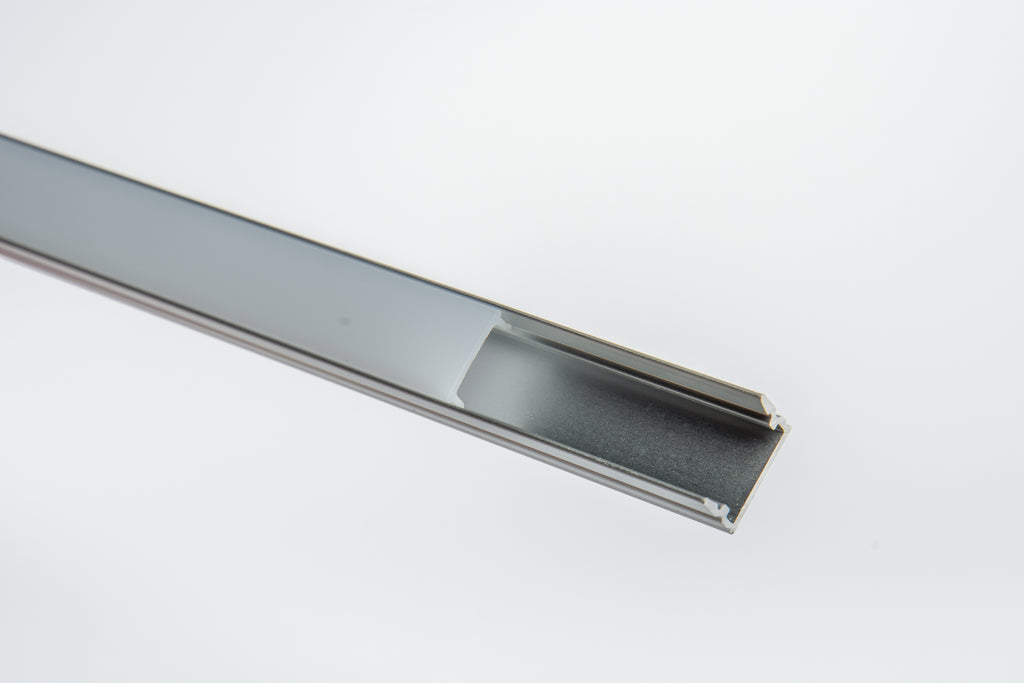

0.5" Surface Mount Aluminum Profile (10.3mm Channel)

The PVAC-F10 / PVAC-F11 is a compact 0.5-inch surface mount aluminum profile designed for clean, minimalist LED strip installations.

With a 10.3mm inner channel, this profile is compatible with most standard LED strips, including COB and SMD models. Its low-profile 12mm × 7mm body makes it ideal for under-cabinet lighting, display shelves, millwork, and accent lighting where a discreet architectural finish is required.

The profile includes a white opal diffuser for soft, uniform light distribution, helping reduce glare and eliminating LED hotspots.

Each kit includes two mounting clips for easy surface installation and two end caps (one open for wire pass-through and one closed for clean termination).

Available in silver anodized (PVAC-F10) and black finish (PVAC-F11) to match different interior aesthetics.

Recommended Applications:
• Under-cabinet lighting
• Shelving, millwork, and displays
• Accent lines in furniture and retail fixtures
• General architectural LED strip finishing

Included Components:
• White diffuser
• 2 × mounting clips
• 2 × end caps (one open, one closed)

Dimensions:

• Outer size: 12mm (W) × 7mm (H)

• Inner channel width: 10.3mm

Materials:

• Aluminum extrusion

• Opal white diffuser

Finish Options:

• Silver anodized (PVAC-F10)

• Black Sand Coated (PVAC-F11)

LED Strip Compatibility:

• Fits 8mm and 10mm LED strips

• COB or SMD

• 12V or 24V

• Max strip wattage depends on installation conditions (safe up to high-output strips due to aluminum heat dissipation)
