1" Trimless Post-Drywall Aluminum Profile

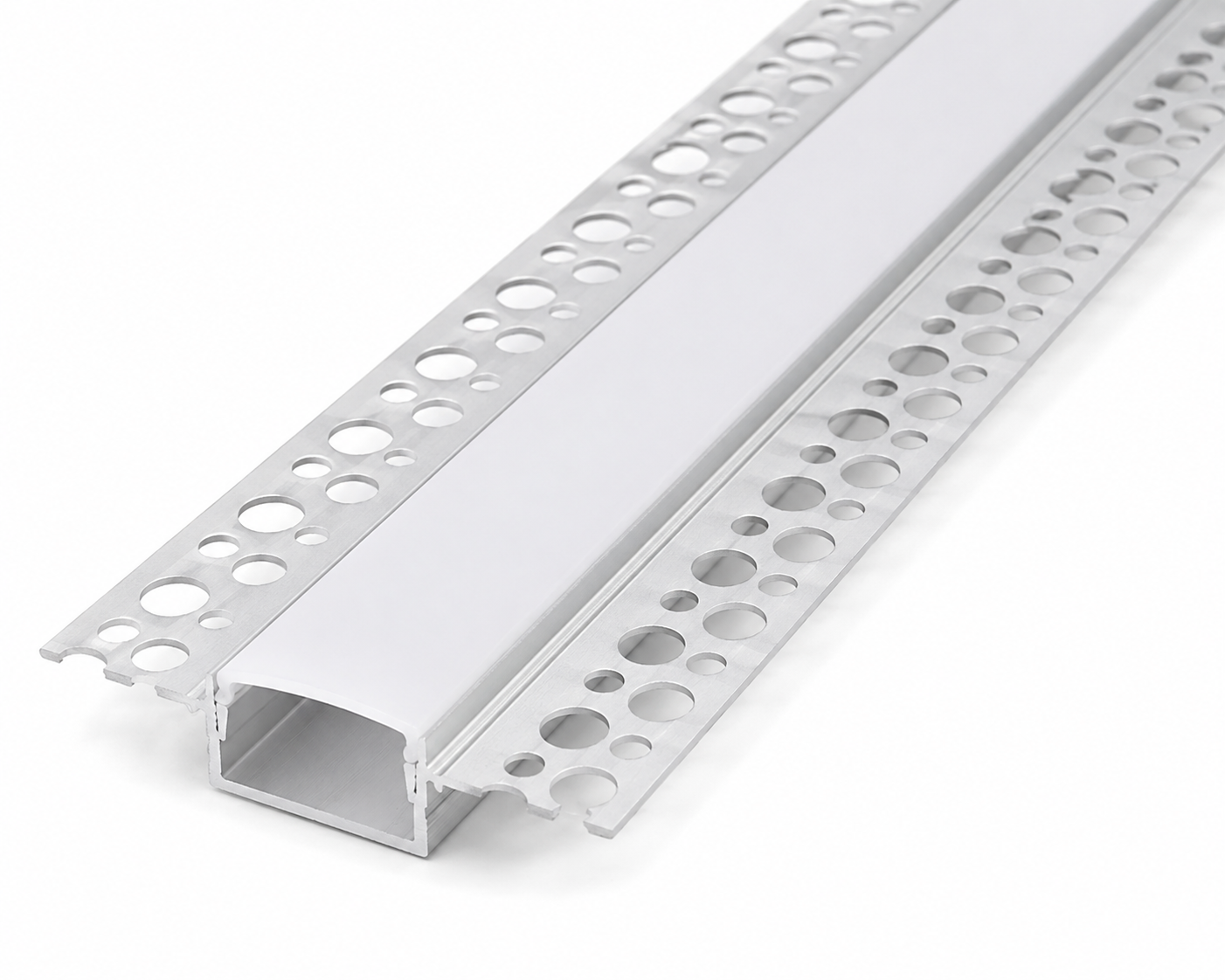

The PVAC-F72 is a trimless post-drywall aluminum profile designed for seamless architectural lighting where wider, higher-output LED strips are required. Installed after drywall and finished with plaster or joint compound, the F72 creates a frameless recessed light line that blends cleanly into walls and ceilings with no visible trim.

Featuring a 21mm inner channel, the PVAC-F72 is designed to accommodate a wide range of LED strips, including standard 8–10mm COB and SMD strips, as well as 15mm high-output Wide LED strips. The silver anodized aluminum body provides excellent heat dissipation, while the white opal diffuser delivers smooth, dot-free illumination ideal for modern architectural lighting applications.

The PVAC-F72 includes two end caps, one open for wire pass-through and one closed,to ensure a clean, professional installation.

Recommended Applications

• Trimless wall and ceiling linear lighting
• Architectural feature walls and recessed light lines
• Hallways and perimeter ambient lighting
• Luxury residential and commercial interiors
• Hotels, offices, retail spaces, and hospitality projects
• Hidden linear lighting in drywall constructions

Included Components

• White opal diffuser
• 2 × end caps (1 open + 1 closed)

Dimensions

• Outer Body: 23 × 7mm (0.91" × 0.28")
• Inner Channel: 21mm (0.83")

Profile Style

Trimless Post-Drywall (Plaster-Over)

Finish

Silver Anodized

Diffuser

White Opal Diffuser (Soft, Even Illumination)

Materials

• Aluminum Extrusion
• Polycarbonate Diffuser

Accessories Included

• 2 × End Caps (1 Open, 1 Closed)

LED Strip Compatibility

• 8mm LED Strips
• 10mm LED Strips
• 15mm Wide LED Strips
• COB LED Strips
• SMD LED Strips
• Ideal for high-output trimless architectural lighting

Key Features

• Trimless plaster-over installation
• Wide 21mm internal channel
• Compatible with 8–15mm LED strips
• Supports COB and SMD LED strips
• Excellent aluminum heat dissipation
• White opal diffuser for uniform, dot-free illumination
• Frameless architectural finish
• Designed for residential and commercial drywall installations
• Includes end caps for a clean installation
